Imagine a valve so tough it laughs at rust and shrugs off chemicals. The PVC butterfly valve with handle gear type brings smooth control and simple operation to any fluid adventure. With a quick twist of the handle, anyone can become the master of flow in their system.

Key Takeaways

• PVC butterfly valves with handle gear type offer strong corrosion resistance and durability, making them ideal for tough environments with chemicals and water.
• The gear handle allows smooth, precise control with just a quarter turn, making flow adjustment easy and efficient for any user.
• These valves save money through low material costs, simple maintenance, and long-lasting performance, proving to be a smart investment for many industries.

PVC Butterfly Valve with Handle Gear Type: What It Is and How It Works

Structure and Key Components

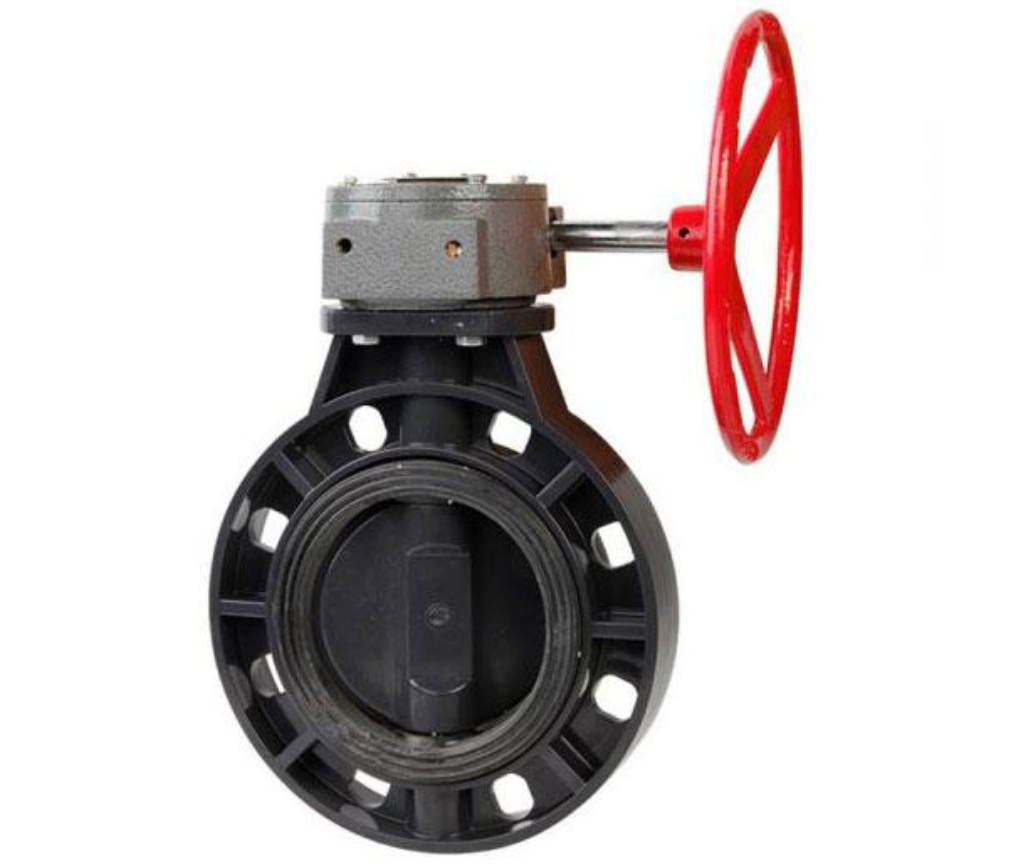

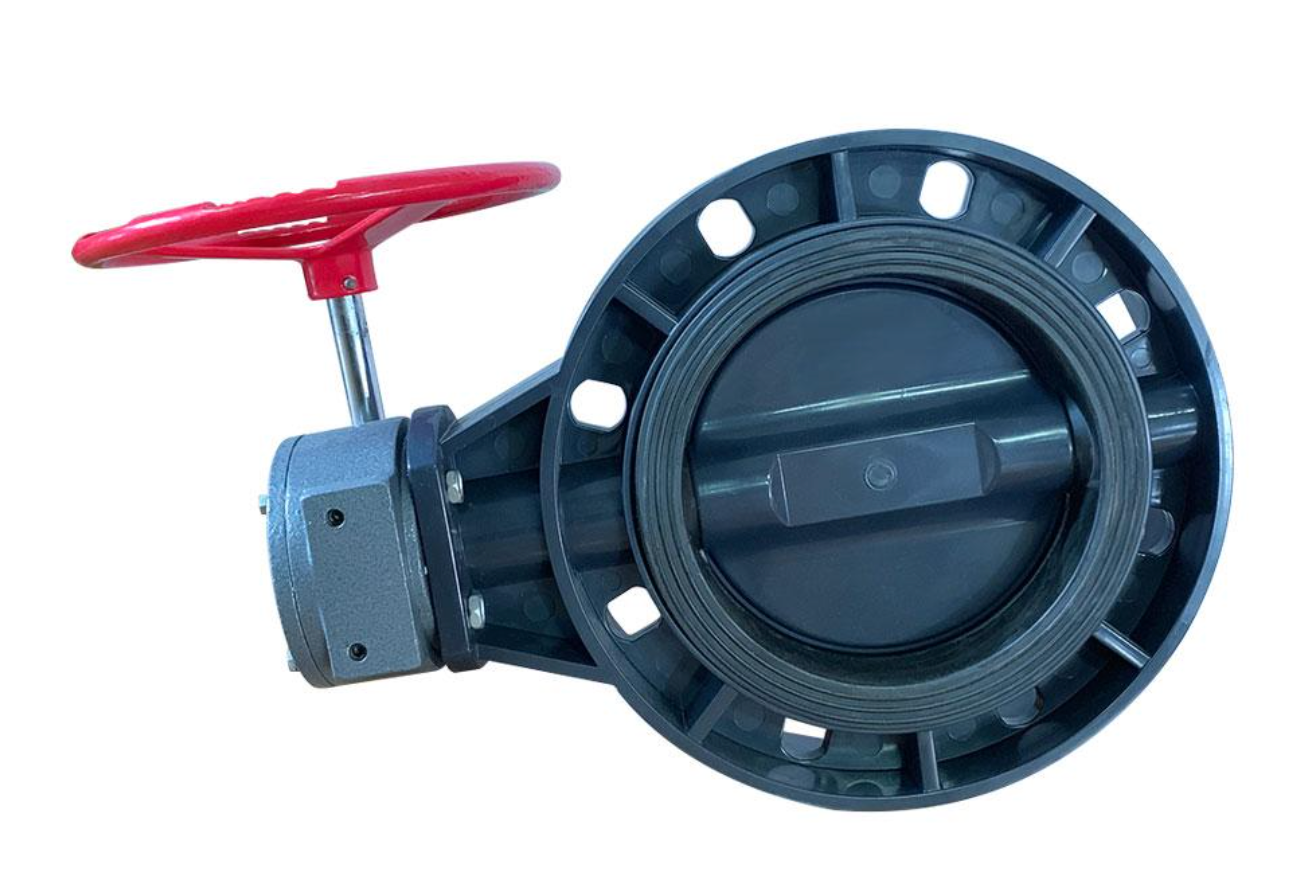

A PVC butterfly valve with handle gear type looks like a superhero gadget for pipes. Its body, made from tough UPVC or CPVC, stands strong against chemicals and water. The disc, shaped like a round shield, spins inside the valve to control the flow. The stem acts as the muscle, connecting the handle to the disc and making sure every twist counts. The seat, made from EPDM or FPM, hugs the disc tightly to stop leaks. Stainless steel bolts and pins hold everything together, while the iron gear box and handwheel make turning the valve feel smooth and easy.

Here’s a quick look at the technical specs:

Engineers tested these valves with shock simulations and real-life bumps. The results? The structure stayed strong, with no cracks from corrosion or wear. Design tweaks made the valve even tougher, so it can handle rough treatment in any system.

Operation and Flow Control

Operating a PVC butterfly valve feels like steering a ship. The handle gear lets anyone turn the disc a quarter turn—just 90 degrees—to open or close the valve. When the disc lines up with the flow, water or gas rushes through. Turn the handle, and the disc blocks the path, stopping the flow instantly. The gear mechanism makes every movement precise, so users can adjust the flow with just the right touch. The streamlined disc design keeps energy loss low, making the valve both efficient and easy to use.

Why a PVC Butterfly Valve with Handle Gear Type Stands Out

Corrosion Resistance and Durability

A PVC butterfly valve with handle gear type faces tough environments every day. Water, chemicals, and even mud try to wear it down, but this valve stands strong. The secret? Its body and disc use UPVC or CPVC, materials that laugh in the face of rust and most chemicals. The seat, made from EPDM or FPM, hugs the disc tightly and keeps leaks at bay. Stainless steel bolts and pins add muscle, making sure the valve stays together even under pressure.

Take a look at how these materials perform in the real world:

PVC butterfly valves go through tough tests. Hydrostatic testing pushes water through at high pressure to make sure no leaks sneak out. Pneumatic testing uses air for extra safety. These tests prove the valve can handle the pressure and keep working, even when things get rough.

Ease of Use and Precise Control

Turning a PVC butterfly valve with handle gear type feels like steering a race car—smooth, fast, and in control. The gear handle lets anyone open or close the valve with just a quarter turn. No need for super strength or fancy tools. The handwheel glides easily, thanks to the iron gear box and strong stem. Every twist gives precise control over the flow, whether it’s a trickle or a rush.

Operators love the simple design. The valve’s compact size and lightweight build make it easy to install, even in tight spots. The streamlined disc keeps energy loss low, so the system runs efficiently. The stem only rotates, never moves up or down, which protects the packing and keeps the seal tight. This means less fuss and more reliable performance.

Tip: For anyone who wants to adjust flow quickly and accurately, this valve is a game-changer. No more guessing—just turn the handle and watch the magic happen.

Cost-Effectiveness and Maintenance Benefits

A PVC butterfly valve with handle gear type saves money from day one. The PVC material costs less than metal, so buyers get more value for their budget. The valve’s tight seal means fewer leaks and fewer repairs. Maintenance becomes a breeze because the valve is light and easy to handle. No need for heavy equipment or special tools. If a part needs checking, operators can inspect or replace discs and seals without taking apart the whole system. This keeps downtime short and the system running smoothly.

Water treatment plants and chemical factories trust these valves for a reason. They handle tough fluids without breaking a sweat. Over time, the savings add up—not just from the lower price, but from fewer repairs and less time spent on maintenance. Some big water plants even cut costs by buying these valves in bulk, showing that smart choices lead to big rewards.

Note: When choosing valves for a project, remember to look at the total cost—not just the price tag. Long-term savings and easy maintenance make the PVC butterfly valve with handle gear type a smart investment.

Applications and Selection Tips for PVC Butterfly Valve

Typical Uses Across Industries

A PVC butterfly valve loves adventure. It pops up in water treatment plants, chemical factories, food processing lines, and even in power stations. Operators use it to control water, air, and even slurries. The valve’s superpower? It resists corrosion and handles tough fluids without breaking a sweat. Many industries choose it for its low maintenance and long life. Market data shows these valves shine in water treatment, chemical processing, and wastewater management. They help companies save money and energy while keeping operations smooth.

Here’s a quick look at where these valves work best:

• Water and wastewater treatment
• Chemical processing
• Food and beverage production
• Power generation
• HVAC systems

Operators trust the PVC butterfly valve for its reliability and ability to handle demanding jobs.

Choosing the Right Size and Compatibility

Picking the right valve size feels like choosing the perfect pair of shoes—fit matters! Engineers start by measuring the pipe’s diameter. They check flow rates and pressure needs. A valve that’s too small can cause pressure problems, while one that’s too big wastes money. Material compatibility is key. The valve must handle the system’s temperature and chemicals. Experts recommend checking manufacturer charts and following these steps:

1. Measure the pipe’s diameter.
2. Check flow and pressure needs.
3. Review temperature and chemical compatibility.
4. Pick the right valve type for the job.
5. Confirm standards and specs.

A well-chosen valve keeps the system safe and efficient.

Installation and Maintenance Considerations

Installing a PVC butterfly valve is a breeze. Its lightweight build means no heavy lifting. The compact design fits tight spaces. Maintenance teams love how easy it is to inspect and replace parts. No need for fancy tools. Regular checks keep the valve working like new. Customer reviews give top marks for easy installation and bubble-tight shutoff. This valve proves that simple can be powerful.

The PVC butterfly valve with handle gear type brings lasting value to any system. Its strong seal, lightweight build, and easy maintenance keep things running smoothly. Long-term studies show these valves cut downtime and boost efficiency. Smart operators trust this valve for reliable, cost-saving flow control.

FAQ

How does the handle gear make valve operation easier?

The handle gear acts like power steering for pipes. Anyone can turn the valve smoothly, even with big sizes or high pressure. No superhero strength needed!

Can this valve handle both water and chemicals?

Absolutely! The PVC body and special seals laugh at water and most chemicals. This valve loves a challenge, whether it’s a pool or a chemical plant.

What sizes are available for the PVC butterfly valve with handle gear type?

• Sizes range from 2 inches to 24 inches.
• That means tiny pipes and giant pipelines both get the perfect fit!
