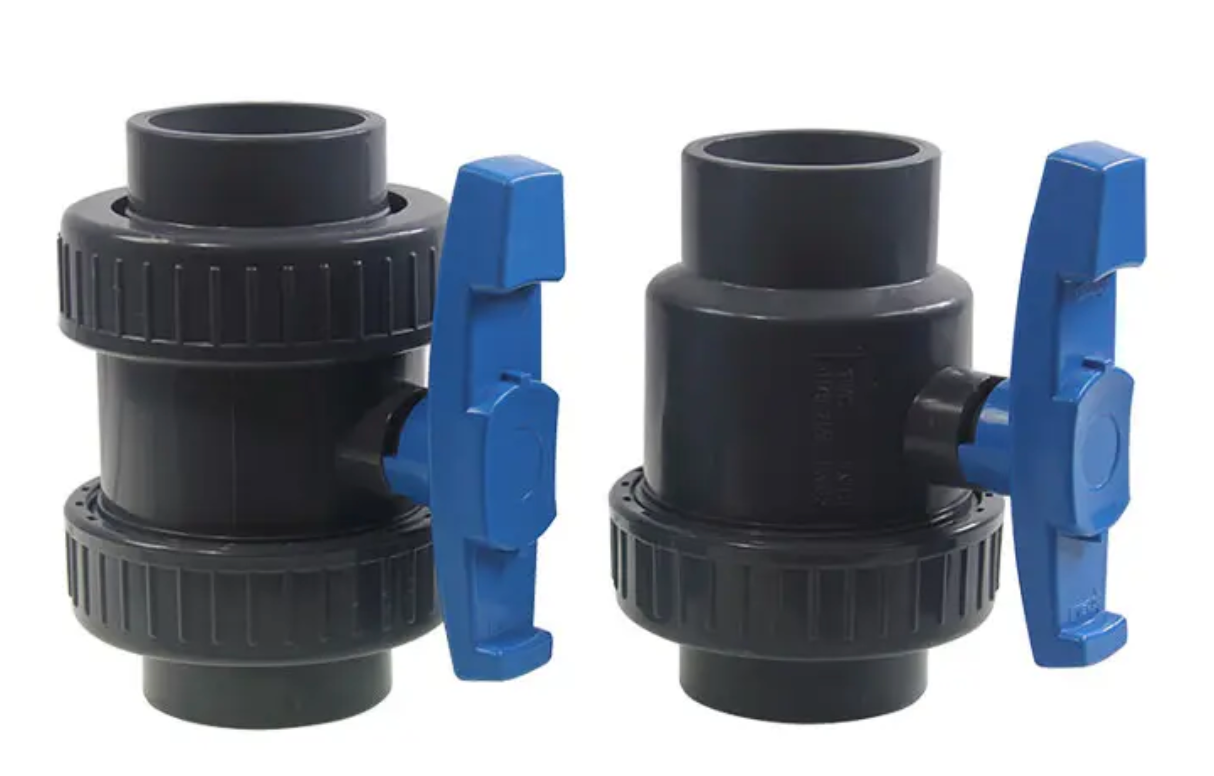

PVC True Union Ball Valve stands out in fluid control systems. Users gain easy maintenance, quick part replacement, and modular construction. They benefit from flexible installation and reliable leak prevention. Industries such as chemical, water treatment, and agriculture depend on these valves for safe and efficient operation.
- Fast servicing reduces downtime
- Multiple end connectors fit diverse piping systems
- Customizable sealing options boost performance
Key Takeaways
- PVC True Union Ball Valves offer easy maintenance with quick removal and replacement, saving time and reducing downtime.
- Their modular design fits various pipe types and sizes, allowing flexible installation and simple upgrades without full replacement.
- Advanced sealing and durable materials ensure leak prevention and safe operation in chemical, water, and agricultural systems.
Key Benefits of PVC True Union Ball Valve
Easy Maintenance and Serviceability
A PVC True Union Ball Valve offers unmatched convenience when it comes to maintenance. The true union design allows users to remove the valve from the pipeline without cutting pipes or using special tools. This feature makes cleaning, inspection, and replacement fast and simple. The removable carrier lets technicians take out the valve for servicing, which means they do not need to dismantle the entire system.
Regular maintenance becomes less of a chore and more of a quick task.
Many industries have found that these valves reduce maintenance time and costs. The threaded connections and modular parts make assembly and disassembly easy. With a service life of up to 25 years under normal conditions, these valves require minimal attention. Replacement parts and technical support are widely available, making ongoing care straightforward.
Common maintenance practices include:
- Inspecting for wear or leaks
- Lubricating moving parts
- Replacing seals as needed
- Cleaning debris from components
- Monitoring pressure and temperature limits
Modularity and Installation Flexibility
The modular construction of a PVC True Union Ball Valve stands out in fluid control systems. Users can choose from a range of end connections, such as socket or threaded types, to fit different piping standards like ANSI, DIN, JIS, or BS. This flexibility allows the valve to adapt to many installation scenarios, whether in industrial plants, commercial buildings, or residential plumbing.
- The true union design supports quick disassembly and reassembly.
- The valve fits pipe sizes from 1/2″ to 4″, covering most common applications.
- Lightweight construction makes handling and installation easier.
This modularity means users can upgrade or change parts without replacing the entire valve. The design also supports both manual and automated operation, making it suitable for a wide range of projects.
Reduced Downtime and Increased Efficiency
A PVC True Union Ball Valve helps keep systems running smoothly. The quick-disconnect feature allows maintenance or replacement in just 8 to 12 minutes—about 73% faster than with traditional valves. This rapid servicing reduces system downtime and keeps operations efficient.
Operators can maintain high flow rates and reliable performance, even in high-pressure or high-flow applications.
The modular design allows for component replacement without removing the whole valve. This feature saves time and labor, especially in large or complex systems. The valve’s compatibility with actuators also supports automation, improving process control and precision.
Safety and Leak Prevention
Safety remains a top priority in any fluid control system. A PVC True Union Ball Valve meets strict industry standards, including ASTM and ANSI, ensuring reliable performance. Many models also carry NSF certification, making them suitable for potable water use.
- Pressure ratings reach up to 150 PSI at 73°F, showing robust engineering.
- Advanced sealing technologies, such as EPDM and FKM elastomers, provide excellent chemical resistance and leak-free operation.
- Precision machining of ball and seat components ensures tight shutoff and prevents leaks.
Recent advancements have improved sealing and durability, making these valves a safe choice for handling corrosive or hazardous fluids. The use of high-quality materials and strict quality control further enhances safety and reliability.
PVC True Union Ball Valve vs. Other Valve Types
Differences from Standard Ball Valves
A PVC True Union Ball Valve stands apart from standard ball valves in both structure and function. The true union design allows users to remove the valve body from the pipeline without cutting pipes, making maintenance much easier. Standard ball valves often require the entire system to be shut down and pipes to be cut for servicing.
| Aspect | PVC True Union Ball Valves | Standard Ball Valves |
|---|---|---|
| Structural Design | Pin-secured ball, segmented ball supported by two shafts | Simpler design, no trunnion support |
| Material | PVC or UPVC | Cast iron, steel, stainless steel |
| Functional Use | High velocity, higher pressure, easy removal | Lower pressure, smaller bore size |
| Application | Water, gas, chemicals, leak-proof performance | Water, petroleum, gas, construction |
This advanced structure reduces friction and wear, leading to longer service life and fewer leaks.
Advantages Over Metal and Other Plastic Valves
PVC True Union Ball Valves offer excellent chemical resistance, especially in caustic environments. Unlike metal valves, they do not rust or corrode when exposed to harsh chemicals. They also cost less and require less maintenance. While stainless steel valves are strong and handle higher pressures, PVC valves excel in water, wastewater, and chemical applications where corrosion resistance is critical.
Note: PVC valves may show slight surface changes under sunlight, but this does not affect performance.
Their lightweight design makes installation simple, and their modular construction supports a wide range of end connections.
Addressing Common Concerns: Cost, Size, and Reliability
Many users choose PVC True Union Ball Valves for their cost-effectiveness. The affordable material, combined with a long lifespan and low maintenance needs, leads to significant savings over time. These valves handle pressures up to 150 PSI and temperatures up to 140°F, making them reliable for most fluid control systems. Failures are rare when used within recommended limits, and most issues result from improper installation.
- Lower total cost of ownership
- Reliable sealing and operation
- Easy compliance with industry standards
Choosing a PVC True Union Ball Valve means investing in a product that balances performance, safety, and value.
PVC True Union Ball Valve stands out for its easy maintenance, advanced sealing, and strong chemical resistance. Users benefit from quick installation, modular design, and reliable leak prevention.
- True union design saves time
- Durable materials last for decades
- Supports automation and safety standards
Choose this valve for dependable, efficient fluid control in any project.
FAQ
How does a PVC True Union Ball Valve prevent leaks?
Advanced sealing materials like EPDM and FKM create a tight seal. Precision engineering ensures reliable shutoff. Users experience leak-free operation in demanding environments.
Tip: Regular inspection keeps seals in top condition.
Can users install these valves without special tools?
Yes. The true union design allows easy installation and removal. Standard hand tools work for assembly. Users save time and effort during setup.
- No welding required
- Fits multiple pipe standards
What applications suit PVC True Union Ball Valves best?
These valves excel in water treatment, chemical processing, and agriculture. Their corrosion resistance and modular design make them ideal for fluid control in many industries.
| Application | Benefit |
|---|---|
| Water Treatment | Safe, reliable flow |
| Agriculture | Easy maintenance |
| Chemical Plants | Strong resistance |
