Pe100 Pipe Fittings stand out in water distribution because they combine high strength with impressive pressure tolerance. Their advanced material resists cracking and ensures a long service life. The World Health Organization recognizes HDPE as safe for drinking water. In 2024, PE100 fittings hold the largest market share worldwide due to their unmatched durability.
Key Takeaways
- PE100 pipe fittings offer exceptional strength and resist cracking, making them ideal for long-lasting water distribution systems.
- These fittings keep water safe by preventing harmful substances and microbial growth, ensuring clean drinking water.
- PE100 fittings save money with easy installation, low maintenance, and a service life that often exceeds 50 years.
Understanding Pe100 Pipe Fittings
What Is PE100?
PE100 is a type of high-density polyethylene used in modern piping systems. Engineers select this material for its strong and flexible nature. The molecular structure of PE100 includes cross-linked polymer chains. This design gives the material strength and helps it resist cracking. Stabilizers and antioxidants protect the pipes from sunlight and aging. The chemical makeup also prevents harmful substances from leaching into the water, keeping it safe for drinking. PE100 pipes work well in both hot and cold climates because they stay tough even at low temperatures.
PE100 pipes have a special molecular design. This design helps them keep their shape under pressure and resist damage from chemicals and the environment.
Key Properties of Pe100 Pipe Fittings
Pe100 Pipe Fittings have several important physical and chemical characteristics. The table below shows some key values:
| Characteristic | Value / Description |
|---|---|
| Density | 0.945 – 0.965 g/cm³ |
| Elastic Modulus | 800 – 1000 MPa |
| Elongation at Break | Greater than 350% |
| Low Temperature Resistance | Maintains toughness at -70°C |
| Chemical Resistance | Resists acids, alkalis, and salt corrosion |
| Service Life | 50-100 years |
These fittings also show high tensile strength and impact resistance. For example, the tensile strength at yield is 240 kgf/cm², and the elongation at break is over 600%. The fittings can handle soil movement and temperature changes without cracking. Their flexibility and leak-proof joints make them a top choice for water distribution systems.
Pe100 Pipe Fittings vs. Other Materials
Strength and Pressure Performance

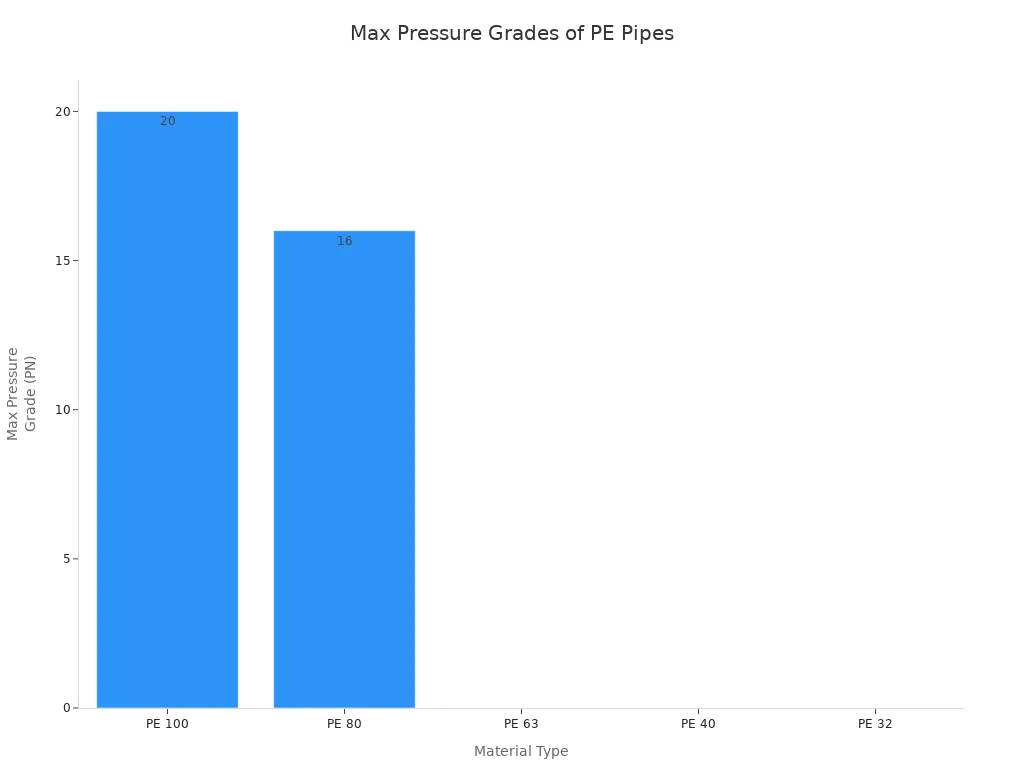

Pe100 Pipe Fittings offer high strength and pressure ratings compared to other polyethylene materials. The table below shows how different PE materials perform under pressure:
| Material Type | Minimum Required Strength (MRS) at 20°C over 50 years | Typical Maximum Pressure Grade (PN) |
|---|---|---|
| PE 100 | 10 MPa (100 bar) | Up to PN 20 (20 bar) |
| PE 80 | 8 MPa (80 bar) | Gas pipes up to 4 bar, water pipes up to 16 bar |
| PE 63 | 6.3 MPa (63 bar) | Medium pressure applications |
| PE 40 | 4 MPa (40 bar) | Low pressure applications |
| PE 32 | 3.2 MPa (32 bar) | Low pressure applications |
Pe100 Pipe Fittings can handle higher pressures than older PE materials. This makes them a strong choice for demanding water systems.
Durability and Crack Resistance
Pe100 Pipe Fittings show excellent durability in many environments. Studies show that these fittings resist damage from chemicals and water treatment agents. Their molecular structure helps them withstand acids, bases, and disinfectants like chlorine and ozone. Long-term tests in Europe found that HDPE pipes, including PE100, keep their strength for decades. Even after 40 years, older PE pipes kept most of their original strength. Special designs also help Pe100 Pipe Fittings resist slow crack growth and creep, which means they last longer under stress.
Note: When used outdoors, UV rays can cause some surface changes over time. Proper installation and protection help maintain durability.
Suitability for Water Distribution
Pe100 Pipe Fittings meet strict standards for drinking water safety. They comply with NSF/ANSI 61 for potable water, ASTM D3035, AWWA C901, and ISO 9001 for quality. These fittings are also approved by many cities and agencies. Their chemical resistance makes them safe for use with common water treatment chemicals. Installation is easier and faster than with metal or PVC pipes because the fittings are lightweight and use fusion welding. This reduces labor and speeds up projects. Their lower carbon footprint compared to PVC also supports green building goals.
Advantages of Pe100 Pipe Fittings in Water Distribution
Longevity and Service Life
Pe100 Pipe Fittings stand out for their impressive lifespan in water distribution systems. Field studies and pipe investigations show that these fittings experience very little degradation, even after decades of use. Experts have found that:
- Most PE100 pipes in municipal water systems have exceeded their 50-year design life without showing age-related failures.
- Extrapolation studies predict that advanced PE100 materials can last over 100 years under normal conditions.
- International standards like ISO 9080 and ISO 12162 set a conservative design life of 50 years, but actual service life is often much longer because of lower real-world pressures and temperatures.
- Advanced grades, such as PE100-RC, have shown even greater resistance to cracking and thermal aging, with some tests predicting lifetimes over 460 years at 20°C.
These results highlight the long-term reliability of PE100 in water supply networks. The material’s chemical resistance prevents corrosion, which often shortens the life of metal pipes. Fusion welding creates leak-free joints, further reducing the risk of failure and extending service life.
Many cities have found that their PE100 pipe systems continue to perform well after decades underground, making them a trusted choice for long-term infrastructure.
Safety and Water Quality
Water safety is a top priority in any distribution system. PE100 pipe fittings help maintain clean and safe water by limiting the growth of microbes and biofilms. The smooth inner surface of these fittings reduces places where bacteria can settle and grow. Their chemical composition also helps prevent microbial colonization.
A study by the KWR Water Research Institute found that PE100 fittings resist microbial growth better than many other materials. The smooth walls and lack of pores make it hard for biofilms to form. This keeps water cleaner as it moves through the pipes. The durability of PE100 also means the pipes do not break down or release harmful substances into the water, which is important for drinking water systems.
The hygienic properties of PE100 make it a smart choice for hospitals, schools, and food processing plants where water quality matters most.
Cost-Effectiveness and Maintenance
Pe100 Pipe Fittings offer strong cost advantages over metal and PVC alternatives. Their resistance to corrosion and chemicals means they do not rust or degrade, so maintenance needs stay low. Unlike metal pipes, which often require frequent repairs and replacements, PE100 fittings keep their strength and shape for many years.
- The smooth internal surface prevents scaling and biofouling, which helps maintain efficient water flow and reduces the need for cleaning.
- Fusion-welded joints create leak-free connections, lowering the risk of water loss and expensive repairs.
- Installation is easier and faster because the fittings are lightweight and flexible, which reduces labor costs.
According to industry reports, the initial installation cost of PE100 pipe fittings is lower than steel pipes. Their long service life and minimal maintenance needs lead to lower overall costs during the life of the system.
Many water utilities choose PE100 for new projects because it saves money both at the start and over time.
Engineers trust these fittings for their strength and long service life. The unique properties help water systems stay safe and efficient. Many professionals choose Pe100 Pipe Fittings for projects that need reliable performance. These fittings support clean water delivery and reduce maintenance needs for years.
FAQ
What makes PE100 pipe fittings safe for drinking water?
PE100 pipe fittings use non-toxic materials. They do not release harmful substances. Water stays clean and safe for people to drink.
How long do PE100 pipe fittings last in water systems?
Most PE100 pipe fittings last over 50 years. Many systems show no failures even after decades of use.
Can PE100 pipe fittings handle extreme temperatures?
- PE100 pipe fittings stay strong in both hot and cold climates.
- They resist cracking at low temperatures and keep their shape in heat.
