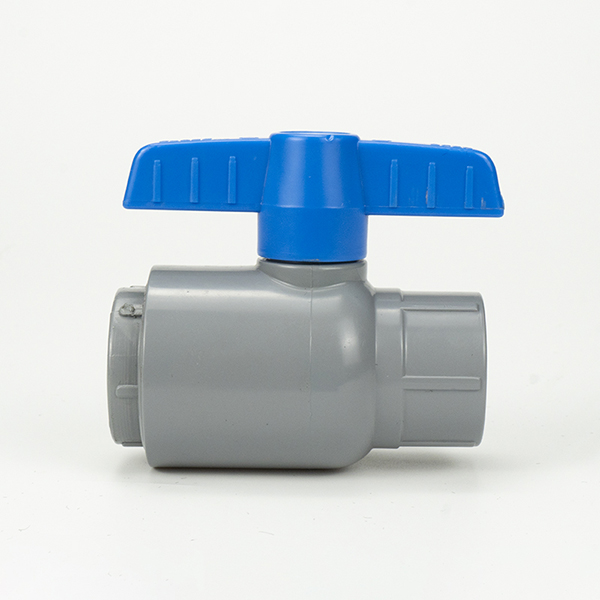

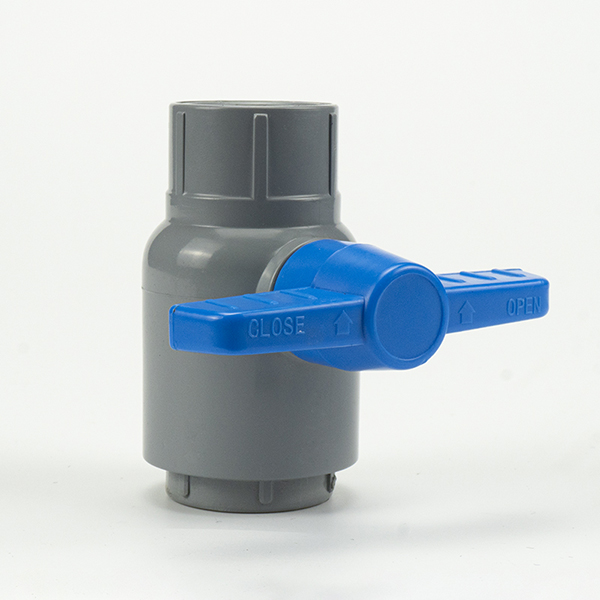

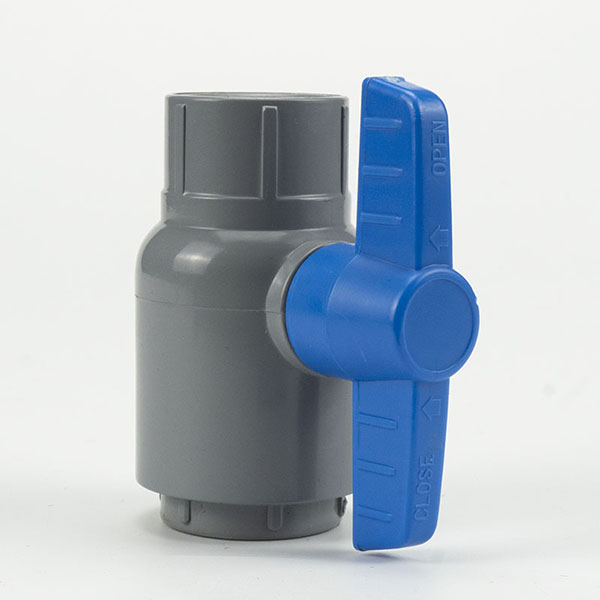

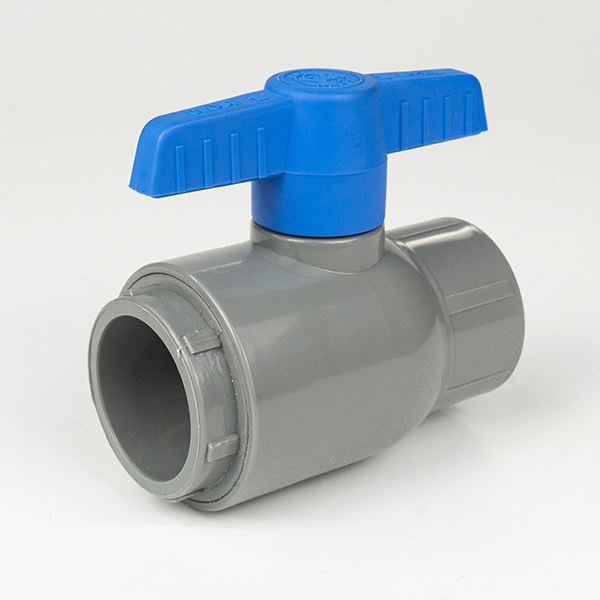

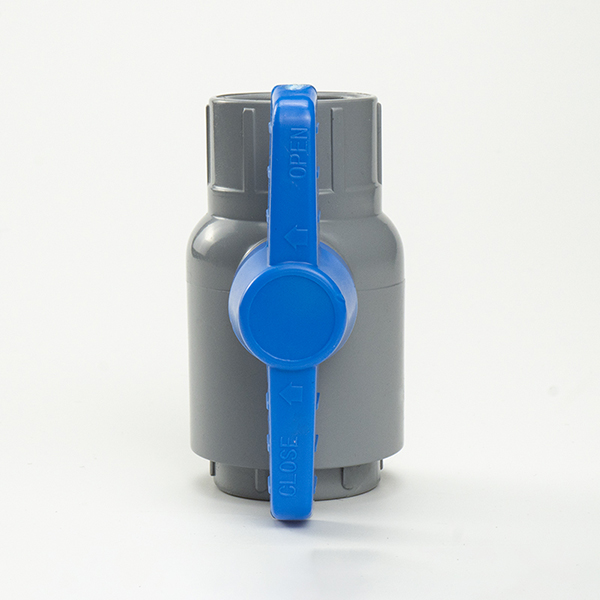

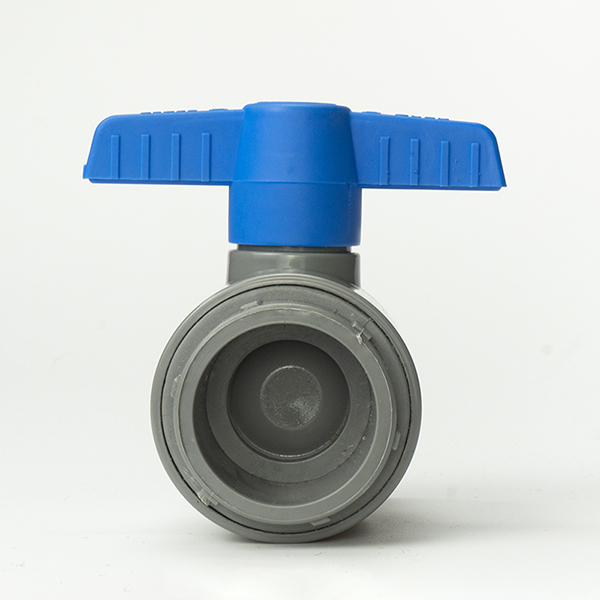

Single Union CPVC Ball Valve Hot Water Control Plumbing Fittings Ball Valve Fittings Plumbing valves

Short Description:

Type:
UnionBall Valve
Pipe size:
1/2 Inch3/4 Inch1 Inch1-1/4 Inch1-1/2 Inch2 Inch
Material:
CPVC
Samples:
Ball Valve , 1/2 Inch , CPVC
$0.01/Piece | 1 Piece (Min. Order)


  • Customized support:: OEM, ODM
  • Brand Name:: Pntek
  • Standard:: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
  • Product Detail

    FAQ

    Product Tags

    Device parameters

    Brand Name:PNTEK
    Use:Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
    Color:Many colors available for choice
    Material:UPVC
    Temperature of Media: High Temperature, low temperature, Medium Temperature, Normal temperature
    Product life::> 500,000 Times Open & Close

    Product Description

    Our company's ball valve can withstand corrosion very well, so its service life can be effectively extended, and the product itself is very flexible and convenient, with high strength and less leakage, so it is highly praised by consumers. They're widely used in industrial and civil building, including indoor and out door drainage,
    sewage pipe projects, corrosion chemical conditions and also can be used for agricultural irrigation system.

    Besides, theyr'e also suitable for ventilation pipe andd drainage pipeline, etc.We have different sizes of products even for a single item,for different application situation. 100% leak test to make sure the products you get are good. There will be normal products inspection during producing to make sure the products are reach international standard.
    As the proportion of plastic pipes in hot and cold water supply and industrial pipe engineering applications continues to increase, the quality control of plastic valves in plastic pipe systems is becoming increasingly important.

    Product advantages

    1, Light weight and high strength
    2. No vibration noise when it's used
    3. Easy to be opened and closed
    4. Compact ball valve is easy to be installed
    5. Lowest leakage rate, 100%tested before packing
    6. The fluid resistance is small
    7. Handle material of ball valve: ABS, body material: PVC
    8. Alkali and acid resistance
    9. Soft color and execllent design
    10. Environment friendly, non-toxic
    11. Widly used in daily life: Construction, agricultural irrigation, industry, garden, swinming pool...
    12. These ball valve are offered in sizes ranging from 20mm to110mm(from 1/2'' to 4'')
    13. Color Available: Green, grey, white, brown, blue
    14. Certificate: ISO 9001,china test

    Legend and physical map

    singleproducimg

    Component material

    specification of material

    NO. Part Material QTY
    1 BODY UPVC,CPVC 1
    2 STEM O-Ring EPDM,FPM(NBR) 1
    3 STEM UPVC,CPVC 1
    4 BALL UPVC,CPVC 1
    5 SEAT SEAL TPE,TPVC,TPO 2
    6 CAP PVC,ABS 1
    7 HANDLE PVC,ABS 1
    8 SCREW SS304,STEEL 1



    Model size parameter comparison table

    DIMENSION Unit
    MODEL DN 15 20 25 32 40 50 65 80 100
    SIZE 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" Inch
    thd./in NPT 14 14 11.5 11.5 11.5 11.5 8 8 8 mm
    BSPT 14 14 11 11 11 11 11 11 11 mm
    JIS I 20 23 25 27 31 34 45 50 55 mm
    d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7 mm
    d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98 mm
    ANSI I 20 23 25 27 31 34 45 50 55 mm
    d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76 mm
    d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07 mm
    DIN I 20 23 25 27 31 34 45 50 55 mm
    d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4 mm
    d2 20 25 32 40 50 63 75 90 110 mm
    d 15 19 24 30 34 45 55 70 85 mm
    H 37 55 66 73 81 91 99 121 134 mm
    A 68 80 94 100 110 136 170 210 236 mm
    L 77 91 103 111 123 146 178 210 255 mm
    D 30 35.5 43 52 62 75 91 106 130 mm
