China Plastic Valves Factory Pntek Compact Ball Valve PVC Pressure Reducing Valve factory and manufacturers

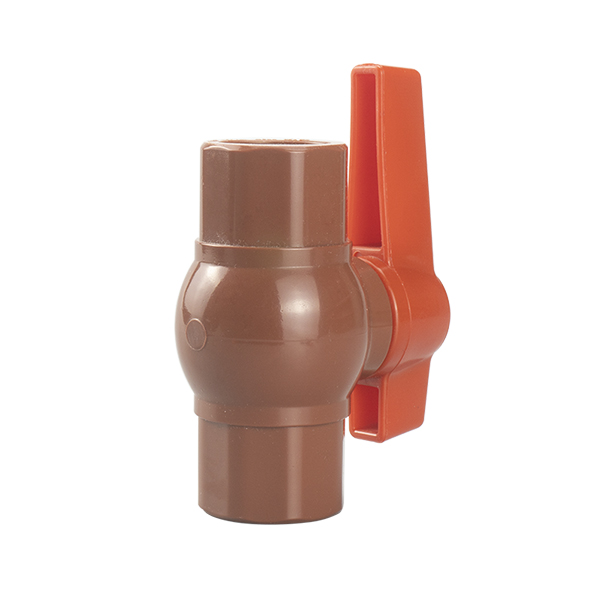

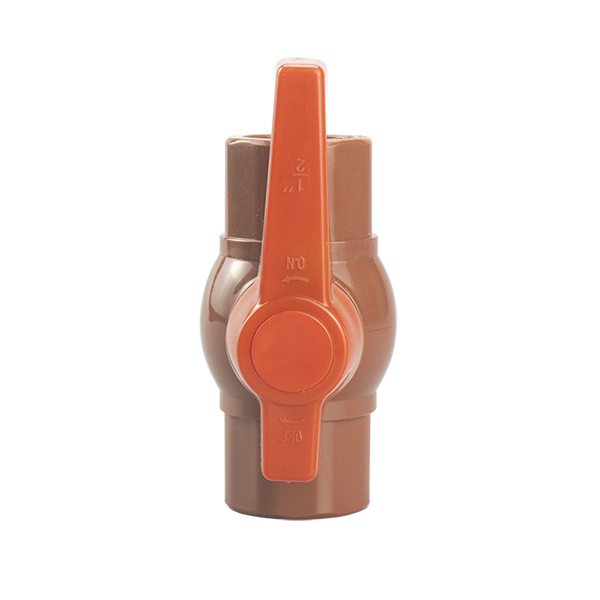

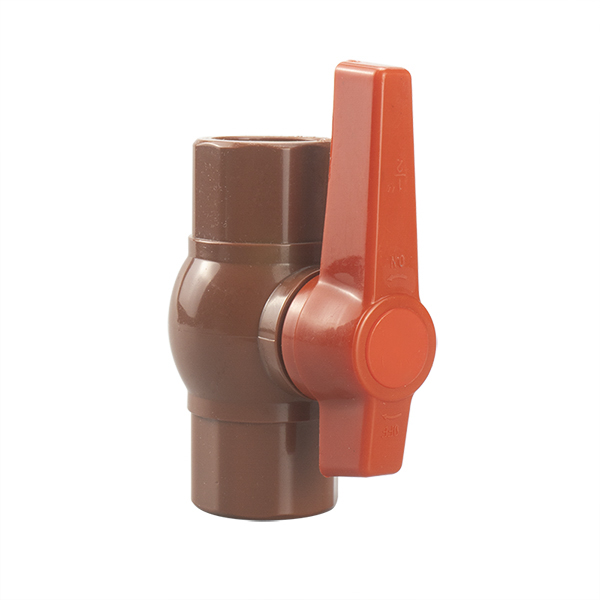

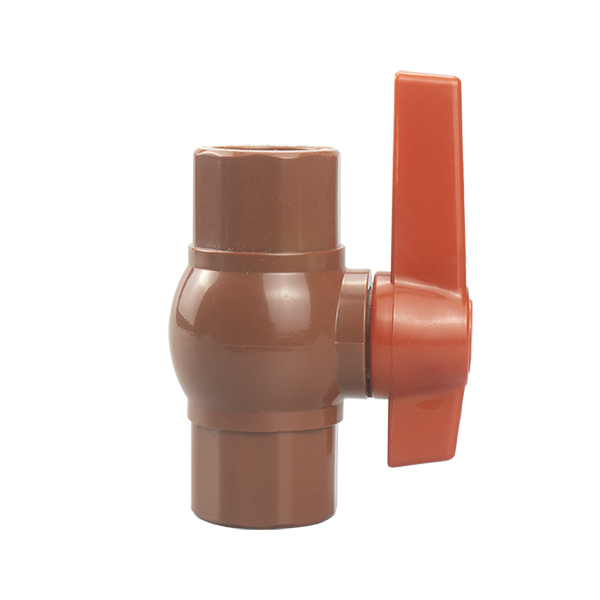

Plastic Valves Factory Pntek Compact Ball Valve PVC Pressure Reducing Valve

Short Description:

$0.10 - $8.00/ Piece|2000 Piece/Pieces(Min. Order)
Size:
1/2in3/4IN1in1 1/4in1 1/2in2in2 1/2in3in4in5in6in8in
Material:
PlasticRubber
Pressure:
Medium Pressure8-16kgs
Samples:
5in , Plastic , 8-16kgs
$0.20/Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 10 To be negotiated
Customization:
Customized logo(Min. Order: 2000 Pieces)
Customized packaging(Min. Order: 2000 Pieces)
Shipping:
Support Sea freight

Type:: BALL VALVES

Customized support:: OEM, ODM

Temperature of Media:: Medium Temperature, Normal Temperature

Send email to us

Product Detail

FAQ

Product Tags

Legend and physical map

singleproducimg

Component material

specification of material

NO.	Part	Material	QTY
1	BODY	UPVC,CPVC	1
2	STEM O-Ring	EPDM,FPM(NBR)	1
3	STEM	UPVC,CPVC	1
4	BALL	UPVC,CPVC	1
5	SEAT SEAL	TPE,TPVC,TPO	2
6	CAP	PVC,ABS	1
7	HANDLE	PVC,ABS	1
8	SCREW	SS304,STEEL	1

Model size parameter comparison table

DIMENSION												Unit
MODEL	DN		15	20	25	32	40	50	65	80	100
	SIZE		1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	Inch
	thd./in	NPT	14	14	11.5	11.5	11.5	11.5	8	8	8	mm
	thd./in	BSPT	14	14	11	11	11	11	11	11	11	mm
	JIS	I	20	20	24	26	30	31	45	48	53	mm
		d1	22.3	26.3	32.33	38.43	48.46	60.56	76.6	89.6	114.7	mm
		d2	21.7	25.7	31.67	37.57	47.54	59.44	75.87	88.83	113.98	mm
	ANSI	I	18	20	24	26	30	31	45	48	53	mm
		d1	21.54	26.87	33.65	42.42	48.56	60.63	73.38	89.31	114.76	mm
		d2	21.23	26.57	33.27	42.04	48.11	60.17	72.85	88.7	114.07	mm
	DIN	I	18	20	24	26	30	31	45	48	53	mm
		d1	20.3	25.3	32.3	40.3	50.3	63.3	75.3	90.3	110.4	mm
		d2	20	25	32	40	50	63	75	90	110	mm
	d		15	19	24	30	34	45	55	70	85	mm
	H		37	55	66	73	81	91	99	121	134	mm
	A		68	80	94	100	110	136	170	210	236	mm
	L		77	91	103	111	123	146	178	210	255	mm
	D		32	37.5	44	52	60	74	93	110	135	mm
